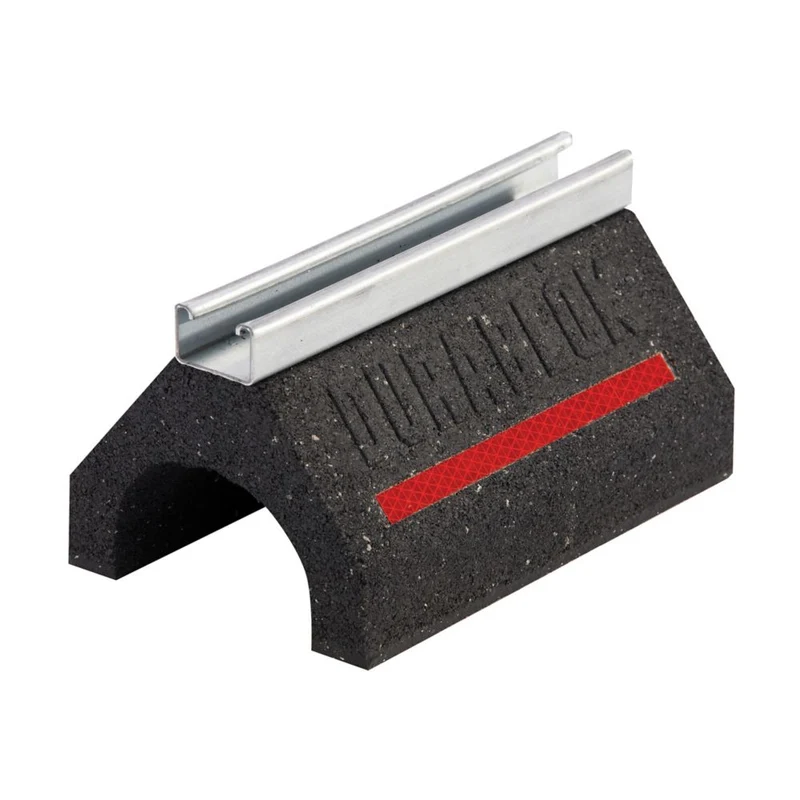

SUPPORT BASE 5X 6X 9.6" WITH B44 1"HIGH CHANNEL RUBBER

DB10 DURA-BLOK™ Rooftop Supports
DB Series - Support Bases with B44 Channel

Base with 14 ga. (1.9mm) galvanized channel 1” high (25.4mm)
Height-Width-Length =5” x 6” x 9.6” (127.0 x 152.4 x 243.8 mm)


Wt./Each 5.28
Lbs. (2.39
kg)


Load Rating 500
Lbs. (2.22



kN)


100% recycled rubber, UV resistant.
Load Rating - Ultimate Uniform Load (See Chart Below)*
DURA-BLOK DB-Series channel support is designed for superior support of
piping systems, cable tray, HVAC equipment, walkway systems and many other
applications. The DURA-BLOK is UV resistant and suitable for installation on
any type of roofing material or other flat surfaces.
For sloped roofs use B634 adjustable hinge fittings
