Vendeur: B-Line

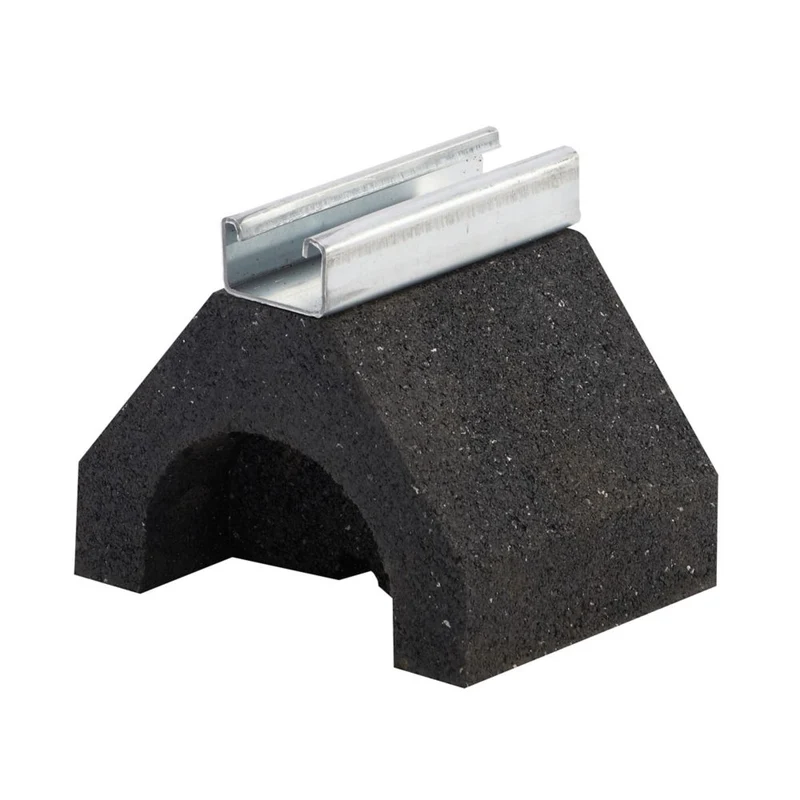

SUPPORT BASE 5X 6X 4.8" WITH B44 1"HIGH CHANNEL RUBBER
0,00 €
Détails du produit
DB5 DURA-BLOK™ Rooftop Supports
DB Series - Support Bases with B44 Channel
Base with 14 ga. (1.9mm) galvanized channel 1” high (25.4mm)
Height-Width-Length = 5” x 6” x 4.8” (127.0 x 152.4 x 121.9 mm)
Wt./Each 2.75
Lbs. (1.25
kg)
Load Rating 200
Lbs. (0.89
kN)
100% recycled rubber, UV resistant.
Load Rating - Ultimate Uniform Load (See Chart Below)*
DURA-BLOK DB-Series channel support is designed for superior support of
piping systems, cable tray, HVAC equipment, walkway systems and many other
applications. The DURA-BLOK is UV resistant and suitable for installation on
any type of roofing material or other flat surfaces.
For sloped roofs use B634 adjustable hinge fittings
DB Series - Support Bases with B44 Channel
Base with 14 ga. (1.9mm) galvanized channel 1” high (25.4mm)
Height-Width-Length = 5” x 6” x 4.8” (127.0 x 152.4 x 121.9 mm)
Wt./Each 2.75
Lbs. (1.25
kg)
Load Rating 200
Lbs. (0.89
kN)
100% recycled rubber, UV resistant.
Load Rating - Ultimate Uniform Load (See Chart Below)*
DURA-BLOK DB-Series channel support is designed for superior support of
piping systems, cable tray, HVAC equipment, walkway systems and many other
applications. The DURA-BLOK is UV resistant and suitable for installation on
any type of roofing material or other flat surfaces.
For sloped roofs use B634 adjustable hinge fittings
