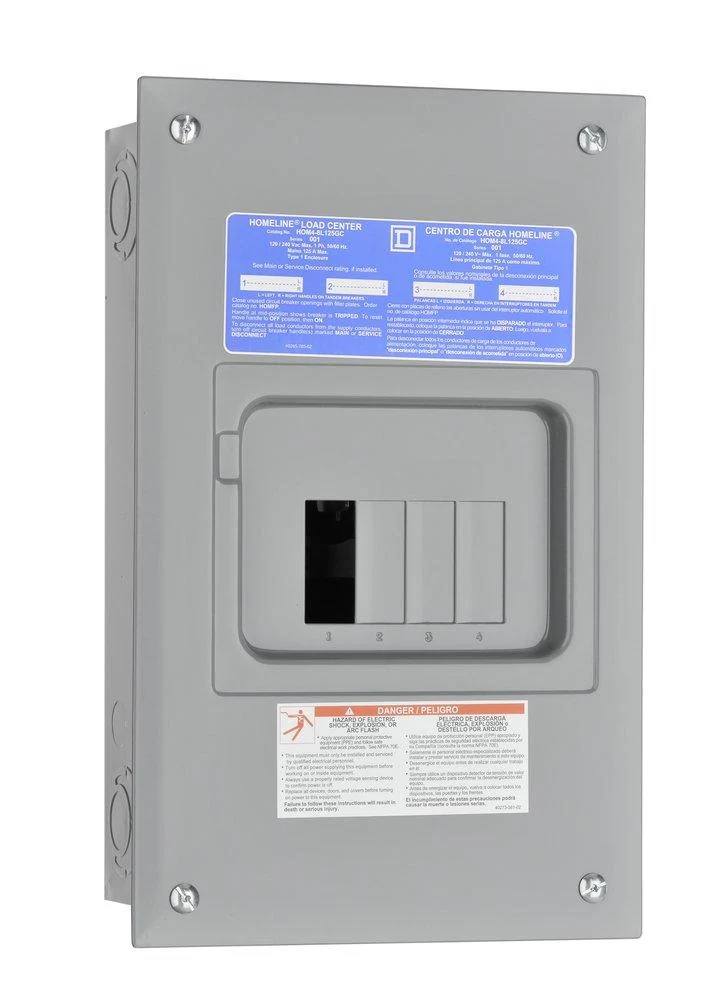

LOAD CENTER 8C 125A 1PH 3W 120/240V MAIN LUG C/W DOOR

8CCT 125A ML enclosure

Main
Commercial Status Commercialised
Range of product Homeline
Product or component type Load Centre
[In] rated current 125 A
System Voltage 120/240 V AC
Short-circuit current 10 kA

Complementary
Electrical connection Lugs
AWG gauge AWG 12...AWG 2/0 (aluminium)
AWG 14...AWG 2/0 (copper)
Load centre type Fixed Mains (lugs)
Number of spaces 4
Number of circuits 8
Number of tandem circuit breakers 4
Phase 1 phase
Cover type Combination flush/surface cover
Device composition Grounding bar included (not installed)
Wiring configuration 3-wire
Material Tin plated aluminium for busbar
Enclosure material Welded sheet steel
Cover finish Gray baked enamel
Box number 21

Environment
Product certifications CSA
NEMA degree of protection NEMA 1 (indoor)
