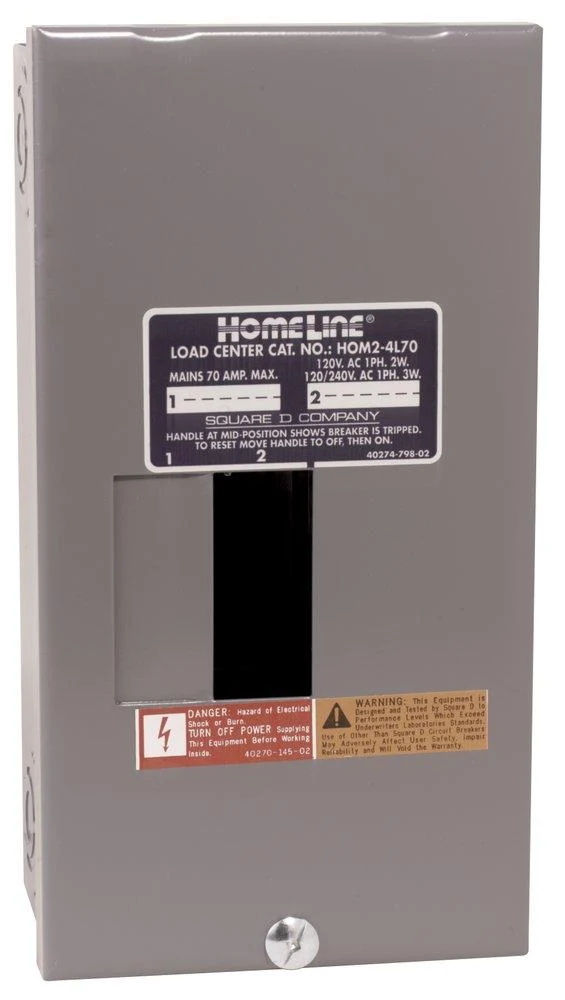

LOAD CENTER 4C 70A 1PH 3W 120/240V MAIN LUG SURFACE

4CCT 70A ML surface trim enclosure

Main
Commercial Status Commercialised
Range of product Homeline
Product or component type Load Centre
[In] rated current 70 A
System Voltage 120/240 V AC
Short-circuit current 10 kA

Complementary
Electrical connection Lugs
AWG gauge AWG 14...AWG 4 (copper)
AWG 12...AWG 3 (aluminium)
Load centre type Fixed Mains (lugs)
Number of spaces 2
Number of circuits 4
Number of tandem circuit breakers 2
Phase 1 phase
Cover type Surface cover
Device composition Grounding bar (ordered separately)
Wiring configuration 3-wire
Material Tin plated aluminium for busbar
Enclosure material Welded sheet steel
Cover finish Gray baked enamel
Box number 2

Environment
Product certifications CSA
NEMA degree of protection NEMA 1 (indoor)
