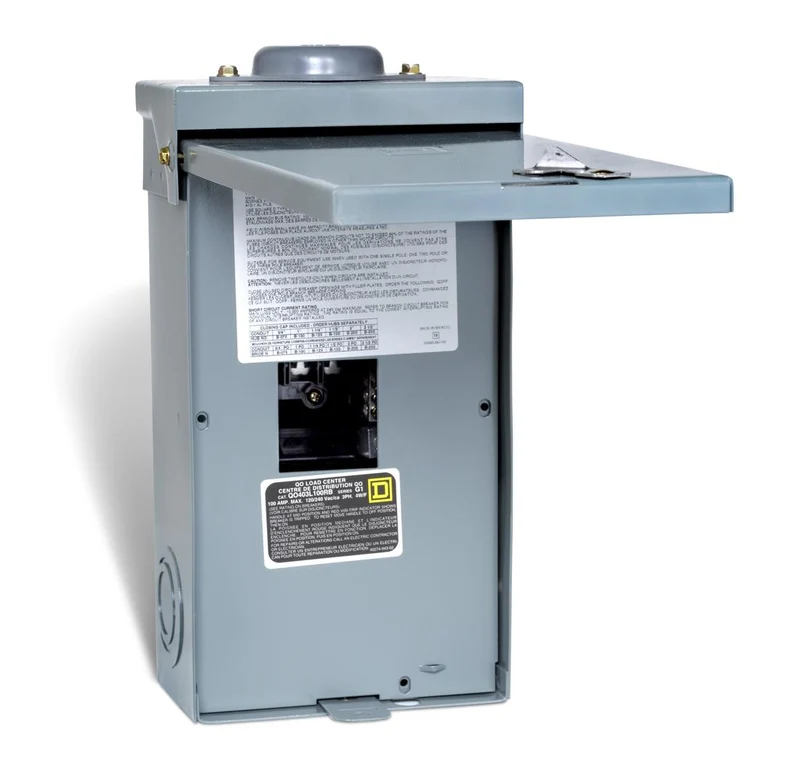

LOAD CENTER 3C 100A 3PH 4W 120/208V MAIN LUGS NEMA-3R

LD CTR QO MLO 240V 100A 3PH 3SP CSA LIST

Product availability: Stock - Normally stocked in distribution facility

Main
Commercial Status Commercialised
Product or component type Load Center
Range of product QO
Load center type Fixed Mains (lugs)
[In] rated current 100 A
Number of spaces 3
Short-circuit current 65 kA
Number of circuits 3
Number of tandem
circuit breakers 0
Network number of phases 3 phases
[Ue] rated operational
voltage 240 V delta AC, 240/120 V delta AC, 208Y/120 V AC

Complementary
AWG gauge 10...6 AWG copper
NEMA degree of protection NEMA 3R outdoor
Cover type Surface cover
Device composition Grounding bar (ordered separately)
Electrical connection Lugs
Wiring configuration 3-wire 4-wire
Material Tin plated copper busbar
Product certifications CSA

Ordering and shipping details
Category 00158 - CANADIAN 3-PH LOAD CENTERS
Discount Schedule DE3
GTIN 00785901207740
Nbr. of units in pkg. 1
Package weight(Lbs) 8.30
Product availability Stock - Normally stocked in distribution facility
Returnability Y
Country of origin MX

Offer Sustainability
Sustainable offer status Not Green Premium product
RoHS Compliant - since 1248 - Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Product end of life instructions Need no specific recycling operations

Contractual warranty
Period 18 months
