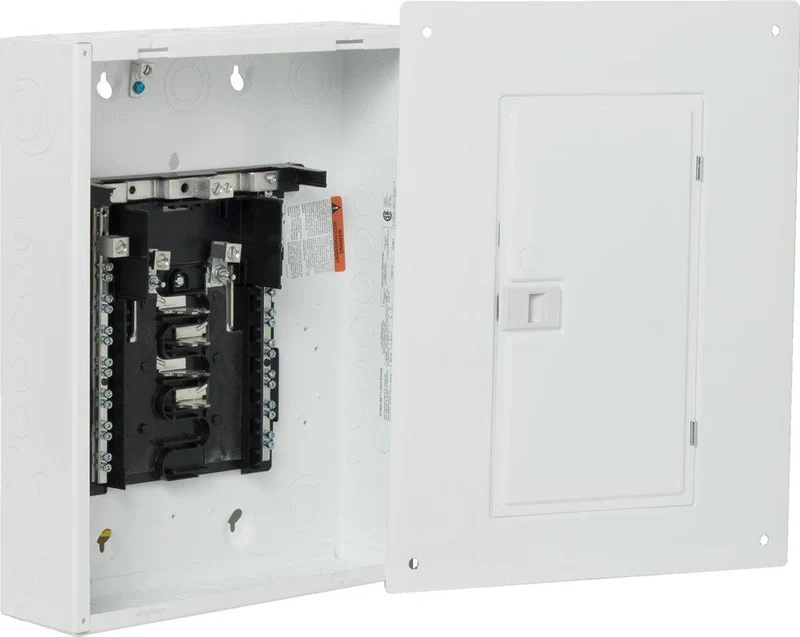

LOAD CENTER 16C 125A 1PH 3W 120/240V MAIN LUG C/W DOOR

HomeLine Loadcentre 1PH 125A 16CCT MAIN LUGS

Main
Commercial Status Commercialised
Range of product Homeline
Product or component type Load Centre
Line Rated Current 125 A
System Voltage 120/240 V AC
Mounting mode Wall mount
Short-circuit current 10 kA

Complementary
Electrical connection Lugs
AWG gauge AWG 6...AWG 2/0 (aluminium/copper)
Load Centre type Main lugs
Number of spaces 8
Number of circuits 16
Number of tandem circuit breakers 8
Phase 1 phase
Cover type Combination flush/surface cover
Device composition Grounding bar included (not installed)
Wiring configuration 3-wire
Material Tin plated aluminium busbar
Enclosure material Welded sheet steel
Cover colour White
Box number 6

Environment
Product certifications CSA
NEMA degree of protection NEMA 1 (indoor)

Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1248
REACh Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Need no specific recycling operations
