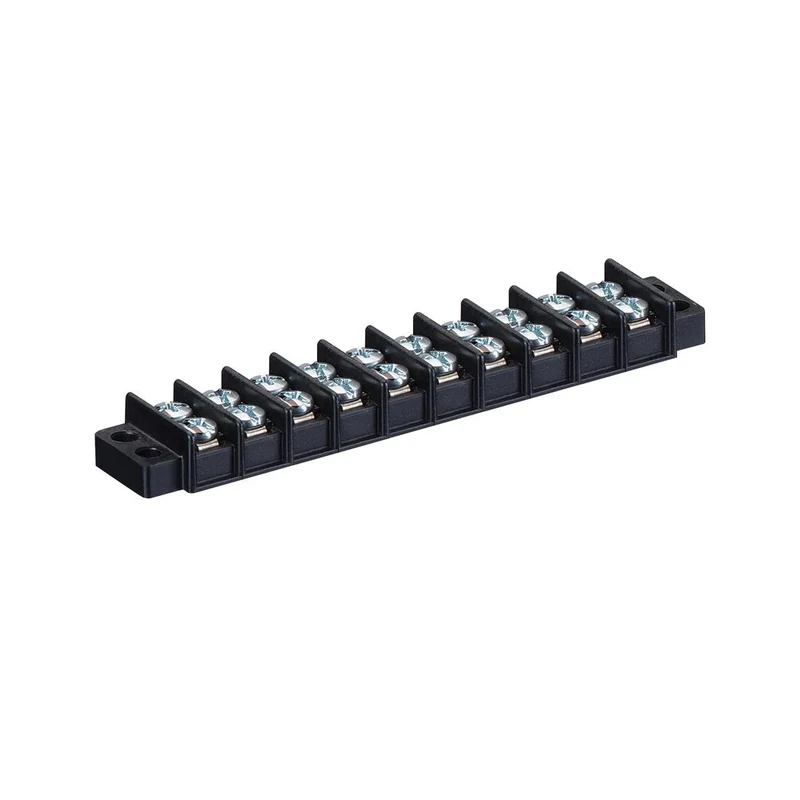

89-300 SERIES TERMINAL STRIPS 10-POLES

Terminal Strip, 10-Pole, 22-14 AWG
375� (9.52mm) center spacing
Accepts wire sizes from 14 through 22 AWG Cu
#6-32 Philslot, zinc-plated steel terminal screws
Recommended torque: 9 in.-lb.
Heavy-duty, corrosion-resistant screws, surface plates, and optional
hardware
Rugged polyester thermoplastic base (UL Rated 94V-0)
UL Recognized (E82048) and CSA Certified (LR15364)
